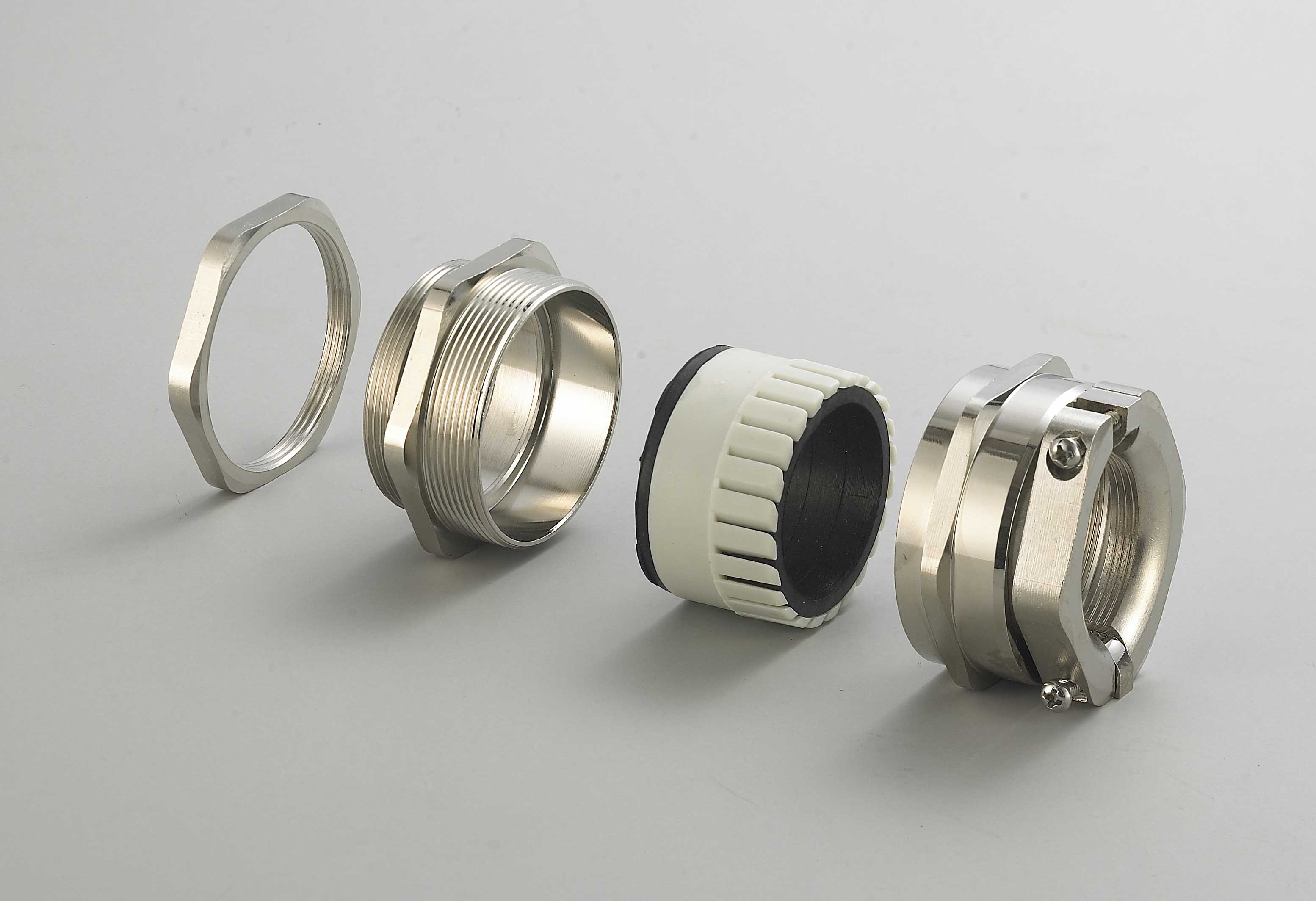

双锁紧金属电缆防水接头
您的位置：首页
> 产品中心
> 双锁紧金属电缆防水接头
详细描述
|
螺牙规格公制 Specifcation of thread（megric） |
螺牙规格PG Specification of thread |
螺牙规格NPT Specification of thread |
螺牙规格G Specification of thread |
适用电缆Cable Range |

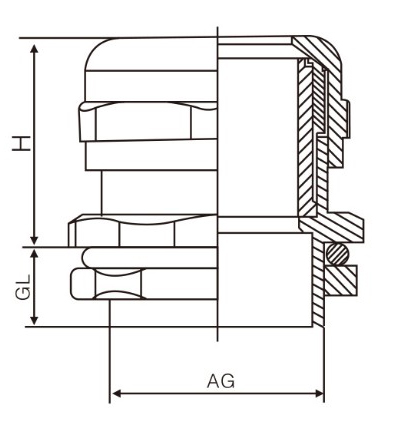

螺纹长度GLThread tength |
板手径 Wrench diameter |
|
M12×1.5 |
PG7 |
NPT1/4 |
G1/4 |
6.5-3 |
7 |
14 |
|
M14×1.5 |
|
|
|
8-4 |
7 |
18 |
|
M16×1.5 |
PG9 |
NPT3/8 |
G3/8 |
8-4 |
8 |
18 |
|
M18×1.5 |
PG11 |
|
|
10-5 |
8 |
20 |
|
M20×1.5 |
PG13.5 |
NPT1/2 |
G1/2 |
12-6 |
8 |
22 |
|
M22×1.5 |
PG16 |
|
|
14-10 |
8 |
24 |
|
M24×1.5 |
|
|
|
14-10 |
9 |
27 |
|
M25×1.5 |
PG19 |
|
|
14-10 |
9 |
27 |
|
M25×1.5 |
|
|
|
18-13 |
9 |
30 |
|
M27×1.5(2) |
|
|
|
18-13 |
9 |
30 |
|
M28×1.5(2) |
PG21 |
NPT3/4 |
G3/4 |
18-13 |
9 |
30 |
|
M30×1.5(2) |
|
|
|
18-13 |
9 |
32 |
|
M32×1.5(2) |
PG25 |
|
|
22-15 |
10 |
35 |
|
M33×1.5(2) |
|
|
|
22-15 |
10 |
35 |
|
M36×1.5(2) |
|
|
|
25-18 |
10 |
40 |
|
M37×1.5(2) |
PG29 |
NPT1 |
G1 |
25-18 |
10 |
40 |
|
M40×1.5(2) |
|
|
|
25-18 |
11 |
45 |
|
M40×1.5(2) |
|
|
|
30-22 |
11 |
45 |
|
M42×1.5(2) |
|
|
|
30-22 |
11 |
45 |
|
M47×1.5(2) |
PG36 |
NPT11/4 |
G11/4 |
33-25 |
11 |
50 |
|
M48×1.5(2) |
|
|
|
33-25 |
11 |
50/52 |
|
M50×1.5(2) |
|
|
|
38-32 |
12 |
54/55 |
|
M54×1.5(2) |
PG42 |
NPT11/2 |
G11/2 |
38-32 |
12 |
57 |
|
M56×1.5(2) |
|
|
|
38-32 |
12 |
59 |
|
M60×1.5(2) |
PG48 |
NPT2 |
G2 |
44-37 |
13 |
65 |
|
M63×1.5(2) |
|
|
|
44-37 |
13 |
67 |
|
M64×1.5(2) |
|
|
|
44-37 |
13 |
67 |
|
M72×2 |
PG63 |
NPT21/2 |
G21/2 |
52-42 |
15 |
77 |
|
M75×2 |
|
|
|
52-42 |
15 |
77 |
|
M80×2 |
|
|
|
62-55 |
15 |
90 |
|
M88×2 |
|
NPT3 |
G3 |
70-65 |
15 |
94 |
|
M100×2 |
|
|
|
84-78 |
15 |
110 |
材料：黄铜镀镍
夹紧件：尼龙塑料（PA）
密封件：丁腈橡胶（NBR）
0-密封圈：丁腈橡胶（NBR）
防护等级：IP68-10巴压力（旋紧部位）
环境温度：-40℃至100℃，短时至120℃
产品特性：特殊夹紧爪与夹紧圈之设计，夹紧电缆范围大，抗拉力特强，可防水、防尘抗盐、耐弱酸、酒精、油、油脂及一般溶剂。
Material：Brass,nickel plated
Claw：Nickel plastic(PA)
Sealing：NBR
0-Sealing ring：NRB
Protection level：IP68-10 bar pressure(fixed installation and with 0-sealing ring)
Ambient temperature：-40℃~100℃,temporary:to120℃
Character：pecial design of clamping claw and clamping ring, wide clamping range, high stretching resistance, water proof, dust proof, salt resistant, resistant for weak acid, alcohol, oll, grease and general solvent.
