TH焊接式船用填料函
您的位置：首页
> 产品中心
> TH焊接式船用填料函
详细描述
|

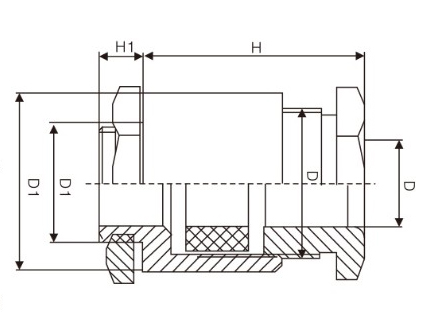

型号 Model |
d(mm) |
D（mm） |
d1（mm） |
D1（mm） |
H（mm） |
H1（mm） |
配用电缆外径 Equipped with cablediameter |
|
TH-8 |
8 |
M16×1 |
13 |
20 |
32 |
3 |
5-7 |
|
TH-13 |
13 |
M20×1 |
17 |
24 |
35 |
8 |
6-12 |
|
TH-16 |
16 |
M27×1.5 |
22 |
32 |
40 |
8 |
11-15 |
|
TH-19 |
19 |
M30×1.5 |
24 |
35 |
42 |
8 |
14-18 |
|
TH-24 |
24 |
M35×1.5 |
30 |
41 |
44 |
8 |
17-23 |
|
TH-28 |
28 |
M42×2 |
35 |
49 |
46 |
8 |
22-27 |
|
TH-34 |
34 |
M47×2 |
42 |
53 |
49 |
8 | 26-33 |
|
TH-42 |
42 |
M55×2 |
50 |
60 |
54 |
8 |
32-41 |
|
TH-50 |
50 |
M62×2 |
58 |
69 |
56 |
8 |
40-49 |
|
TH-58 |
58 |
M71×2 |
66 |
80 |
56 |
8 |
40-49 |
产品材质：D部采用黄钢制成、D1部采用优质钢材制成，夹紧圈采用丁晴橡胶（NBR）制成。
防护等级：在规定的卡口范围内，旋紧迫紧头，达到IP54。
工作温度：静态：零下40度--110度，最高可达120度动态：零下20--80度，最高100度。
产品认证：欧洲CE认证。
产品特性：填料函是一种高品质电缆的防爆附件，装在电缆端口与防爆电器设备的连接处，起引入电缆、固定位置并达到密封、隔爆作用，具有隔爆性能优越、结构安全可靠、安装简单方便、防护等级高等优点。
应用范围：仪表，传播，机械，电气，交通，医药，油田，电缆固定用备注：可根据钢板厚度需要焊接部分可加长，另特殊规格可定做。
Material: part D.D1 is completely made of brass coated, pa rt D1 is made of high quality steel, and the clamping ring is made of nitrile butadiene rubber(NBR).
Protection level: IP54
Temperature Resistance:-40℃to100℃, short time to℃.
Approvals: CE
Features: Marine cable gland is a high quality cable accessories which installed in the connections of explosion poof electrical equipment and cable port, with the adbantages of superior performance of flameproof, safe and reliable structure, easy installation and high protection degree.
Appliacation: Outdoor or Idoor for use with all types of braided or unarmoured marine electrical cable fittings.
