详细描述
|
规格 Gland size |
螺纹规格Thread A |
夹紧件类型Packingtype |
适用电缆Cable range |
螺纹长度 Thread length GL（mm） |
机板口径Mounting hole diamerer（mm） |
|
JlS-10 |
3/8" |
A |
6-7 |
11 |
18 |
| B |
7-8 |
|
|
||
|
JIS-15 |
1/2 |
A |
8-9 |
11 |
22 |
| B |
9-10 |
|
|
||
| C |
9-11 |
|
|
||
|
JIS-20 |
3/4" |
A |
11-12 |
11 |
27 |
| B |
12-13 |
|
|||
| C |
12-15 |
|
|
||
|
JIS-25 |
1" |
A |
15-16 |
11 | 34 |
| B |
16-18 |
|
|
||
| C |
16-20 |
|
|
||
|
JIS-30 |
1-1/4" |
A |
20-22 |
12 | 43 |
| B |
22-24 |
|
|
||
| C |
22-26 |
|
|
||
|
JIS-35 |
1-1/2" |
A |
26-28 |
12 | 49 |
| B |
28-30 |
|
|
||
| C |
26-30 |
|
|
||
|
JIS-40 |
A |
30-32 |
|
|
|
| B |
32-34 |
|
|
||
| C |
30-34 |
|
|
||
|
JIS-45 |
2" |
A |
34-36 |
12 | 61 |
| B |
36-38 |
|
|
||
| C |
36-40 |
|
|
||
|
JIS-50 |
A |
40-42 |
|
|
|
| B |
42-44 |
|
|
||
| C |
40-44 |
|
|
||
|
JIS-55 |
2-1/2" |
A |
44-46 |
12 | 76 |
| B |
46-48 |
|
|
||
| C |
46-50 |
|
|
||
|
JIS-60 |
A |
50-52 |
|
|
|
| B |
52-54 |
|
|
||
| C |
52-56 |
|
|
||
|
JIS-65 |
3" |
A |
56-58 |
14 | 89 |
| B |
58-60 |
|
|
||
|
JIS-70 |
A |
60-62 |
|
|
|
| B |
62-64 |
|
|
||
|
JIS-75 |
A |
64-66 |
|
|
|
| B |
66-70 |
|
|

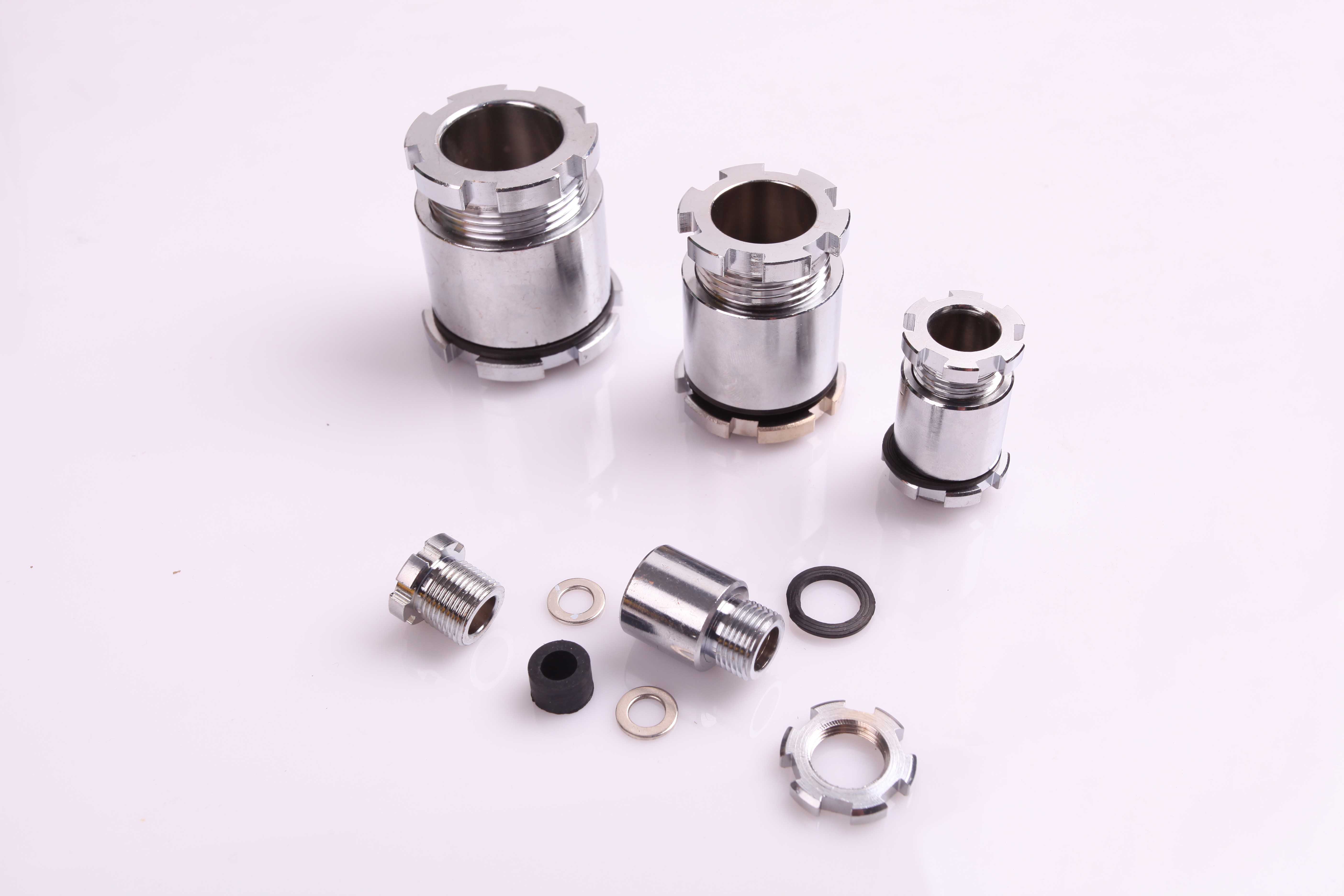

材质：黄铜镀铬接头标准：日式
螺纹：PF产品认证：欧洲CE认证
应用范围：仪表，船舶，机械，电气，交通，医药，油田，电缆固定用备注：可接受特殊规格定做业务，欢迎来电来函垂询.
Material：Brass chromium plated
Gland Type：JIS Standard
Entry Thread：PF
ApprOvals：CE
Application：For use all types of unarmoured cables.
