产品列表

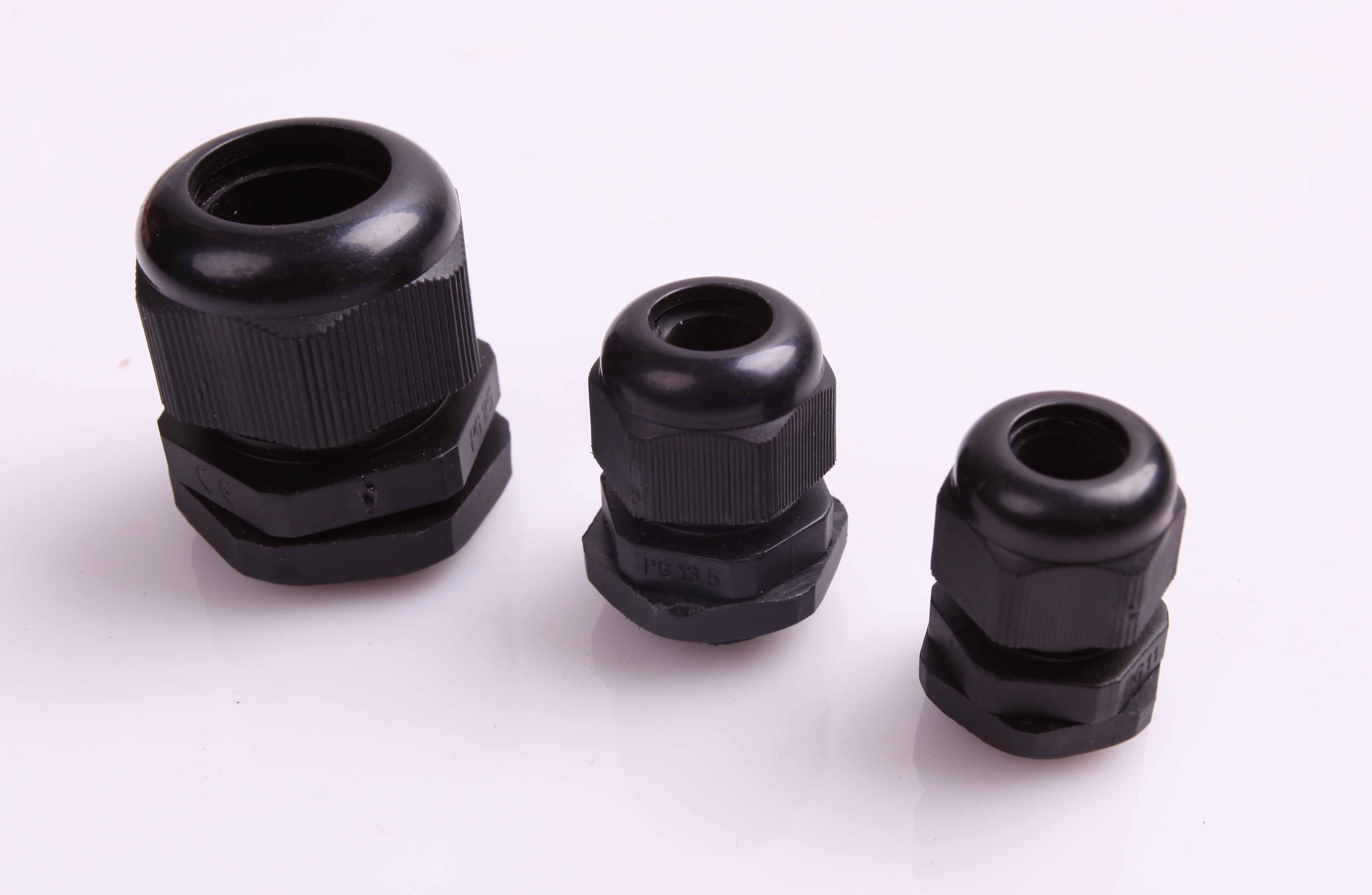

MG尼龙电缆防水接头
您的位置：首页
> 产品中心
> MG尼龙电缆防水接头
详细描述
|
螺纹规格 Thread Size |
适用电缆 Cable Range（mm） |

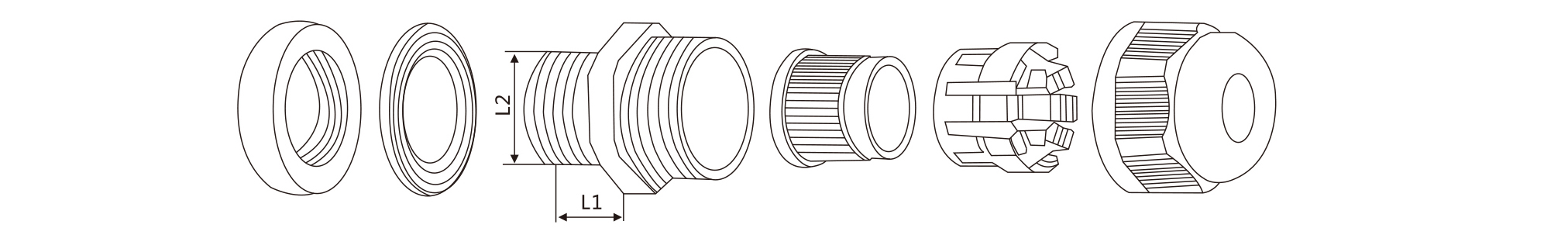

螺纹外径 ThreadO.D.L2（mm） |
螺纹长度 Thread length（mm） |
扳手直径 Spanner sizeA&E（mm） |
数量/袋 Qty/bag |
|
MG12A |
3-5.3 |
12 |
9 |
18/19 |
100 |
|
MG12A |
4.5-8 |
12 |
9 |
18/19 |
100 |
|
MG16A |
4-7 |
16 |
15 |
22/22 |
100 |
|
MG16A |
6-10 |
16 |
15 |
22/22 |
100 |
|
MG20A |
6-11 |
20 |
15 |
27/27 |
100 |
|
MG20A |
9-14 |
20 |
15 |
27/27 |
100 |
|
MG25A |
10-16 |
25 |
15 |
33/33 |
100 |
|
MG25A |
13-18 |
25 |
15 |
33/33 |
100 |
|
MG32A |
15-22 |
32 |
15 |
41/41 |
20 |
|
MG32A |
18-25 |
32 |
15 |
41/41 |
20 |
|
MG40A |
20-25 |
40 |
20 |
50/50 |
20 |
|
MG40A |
24-30 |
40 |
20 |
50/50 |
20 |
|
MG50A |
26-32 |
50 |
22 |
60/62 |
20 |
|
MG50A |
31-41 |
50 |
22 |
60/62 |
20 |
|
MG63A |
40-46 |
63 |
25 |
75/75 |
20 |
|
MG63A |
44-51 |
63 |
25 |
75/75 |
20 |
|
MG90A |
58-68 |
90 |
25 |
110/110 |
5 |
|
MG90A |
66-77 |
90 |
25 |
110/110 |
5 |
产品材质：A.C.E部位采用UL认可的尼龙PA66，B.D部位采用丁腈橡胶；
螺纹规格：公制（Metirc），德制（PG），英制（G），美制（NPT）；
工作温度：静态-40℃至100℃，瞬时耐热至120℃，动态-20℃至80℃，瞬间耐热至100℃；
产品特性：特殊的夹紧爪与橡胶件设计，夹紧电缆范围大，抗拉力特强；可防水、防尘、防盐、耐酸碱、酒精、油脂及一般溶剂。
颜色种类：黑色、白色、灰色、特殊颜色可定做。
Material: Parts A,C,E are made of UL approved nylon PA66, parts B and D are made of nitrile butadiene rubber(NBR)
Thread spec: Metric, PG,G, NPT.
Working temperature:-40℃ to 100℃ in static state, instantaneous heat resistance up to 120℃:-20℃ to 80℃ in dynamic state, instantaneous heat resistance up to 100℃
Characteristics: Special design of clamping die and rubber part, large range in clamping cable, ultra-strong stretching resistance, waterproof, dustproof, and high ability to resist salt, acid, alkali, alcohol, grease and general solvent.
Color: Black. white, grey as well as special colors that can be designed at requset.
